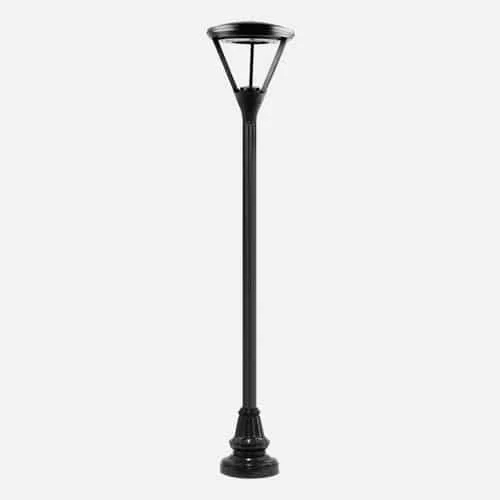

Modern Post Top Luminaire Unit

CL7-PT-M10/11

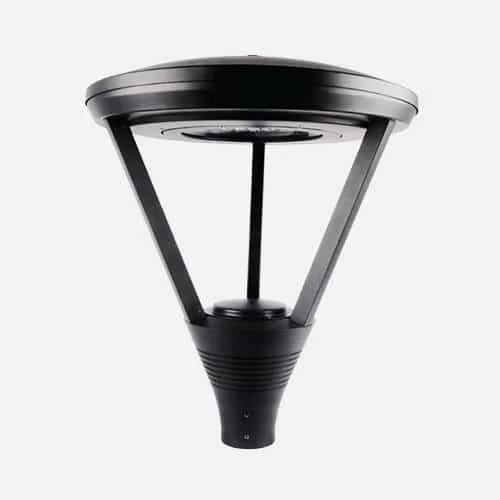

  • – PT-M10/11 LED Modern Post Top Luminaire

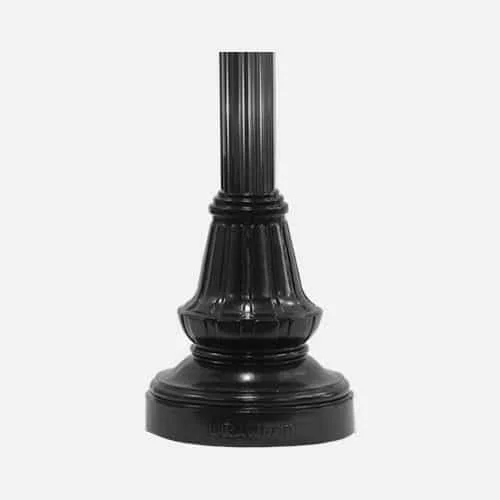

  • – CL7 Decorative Base
  • – Post Top Height: 26.1″ Post Top Width 22.1″
  • – Base Height: 24” Base Width: 20”
  • – Fits all 3″,4″, and 5″ Brandon Industries Smooth or Fluted Poles
  • Contact Our Sales Team for Current Specification and IES Information.

Product Details

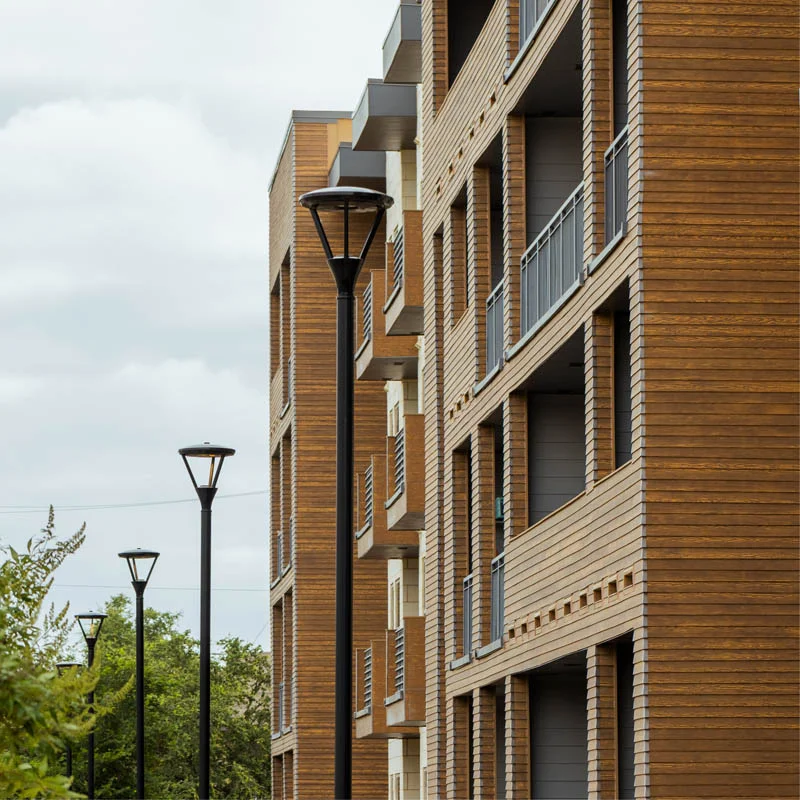

Contemporary styled post top lights provide both form and function for city centers, community areas, campuses and revitalized downtown blocks. At night the area lights provide security and foot path lighting for pedestrians as well as street visibility for automotive traffic. During the day the post tops contribute to the streetscape and landscape visual appeal.

The CL7-PT-M10-11 modern post top light kit includes a die-cast, three-prong aluminum housing that mounts atop a 5” diameter extruded aluminum pole. The optional smooth or fluted pole and the sturdy 24”x 20” elegant base are both polyester powder-coat sealed to protect against the elements and damage from daily wear and tear. The luminaire delivers 120-degree optics for wide area of light distribution which can be important for urban streetscapes, neighborhood sidewalks, shopping areas and communities. The M10 model will replace up to 100-watt metal halide (MH) or high-pressure sodium (HPS) fixtures. The M11 will replace up to 250 MH or HPS light poles.
